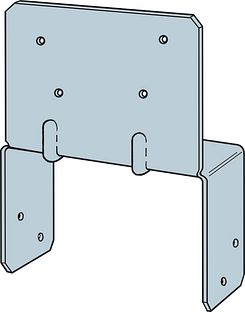

Simpson Strong LPCZ Light Post Cap

Simpson Strong-Tie Company

The LPCZ is designed for a variety of connections between a 4x or 6x beam and a post. This versatile, light post cap has an adjustable design that allows for connection versatility in both new and retrofit applications where structural support is needed. The LPCZ has a ZMAX® coating, a thicker galvanized finish that helps to extend the service life of the connector.

Key Features

  • Always install in pairs; universal design eliminates need for rights and lefts
  • Stronger than angled nailing or screw fastening; eliminates nailing into end grain
  • Can be installed after beams have been put in place

Material

  • LPC4Z — 18 gauge; LPC6Z — 16 gauge

Finish

  • ZMAX coating

Installation

  • Use all specified fasteners; see General Notes
  • Install all models in pairs
  • 2 1/2" beams may be used if 0.148" x 1 1/2" nails are substituted for 0.148" x 3" nails
