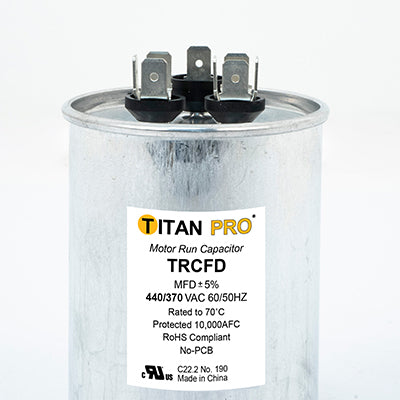

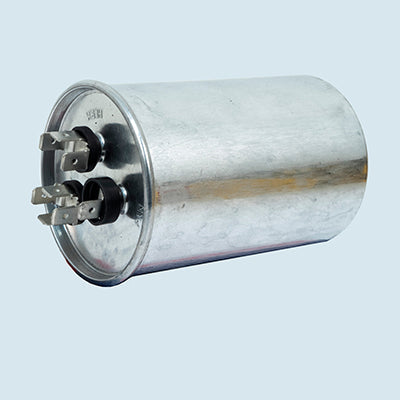

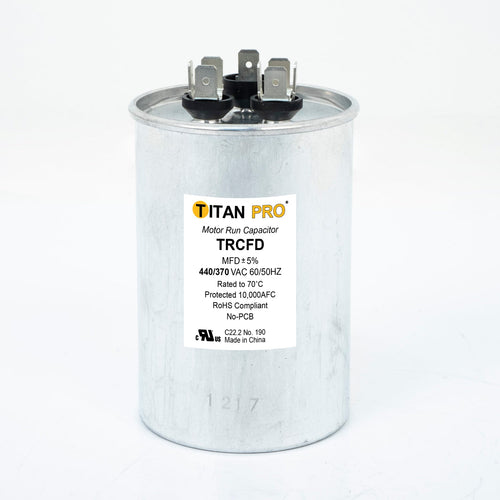

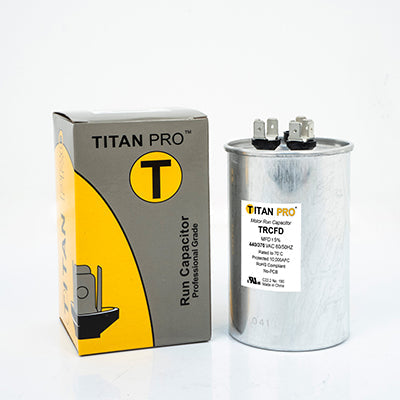

Titan Pro Run Capacitor 45+5 MFD 440/370 Volt Round

Titan Pro Run Capacitor 45+5 MFD 440/370 Volt Round

Titan Pro

Options

Applications/Features

Not all capacitors are built the same. Take it to the PRO level. At 60,000 hours of operational life, Titan PRO™ Professional Grade Motor Run Capacitors get the job done by outperforming standard motor run capacitors of similar value by 83%!

RELIABLE

60,000 hours operational life

FLEXIBLE

Titan PRO™ 440/370 volt design reduces inventory

Titan PRO™ 370 volt offers best in class value

COMPLIANT

Built to the toughest international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001

TESTED

100% electrical testing

REINFORCED

Heavy-edged metalized polypropylene film is used for the dielectric

Proprietary bio-degradable oil

Second generation anti-explosion safety switch

Item Specifications

Capacitor Voltage	440/370
Run MFD	45+5
Height (In)	3.74
Capacitor Shape	Round
Brand	Titan Pro
Country of Origin	CHINA
Diameter (In.)	2.5
Hertz	50/60
Material	Aluminum
Oil Type	Soybean Based
Operating Temperature Range	-40 to 70
Terminals	Standard blade terminals
Tolerance	+/- 5%
UPC	840899104645
Voltage	440/370
